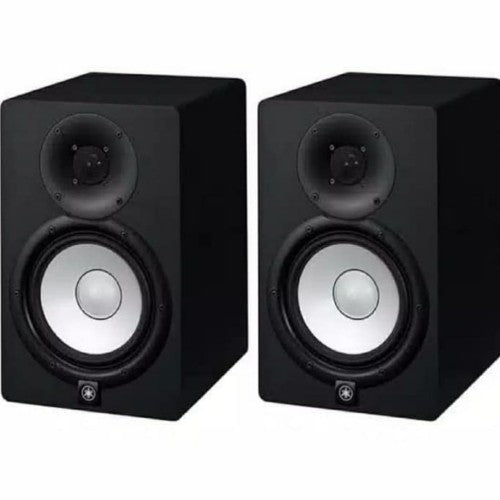

Yamaha HS5

Yamaha HS5

Since the 1970s, the iconic white woofers and distinctive sound of Yamaha nearfield reference monitors have been the original industry standard for a reason - their accuracy. Unlike studio monitors with added bass or treble frequencies that may sound better at first, HS Series speakers are designed to give you the most honest and precise reference, providing an ideal sonic platform to build upon during the mixing process. Combining acquired knowledge and expertise with state-of-the-art sound technology, Yamaha's team of speaker engineers has examined, then optimized, every aspect that contributes to making these monitors the most trusted in their field. The second generation HS series also adds a new 6.5" model to the lineup, bringing its exceptional accuracy to a greater variety of recording environments.

The features:

  • 2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter
  • 54Hz - 30kHz (-10dB), 74Hz - 24kHz (-3dB) frequency response
  • 45W LF plus 25W HF bi-amp system for high-performance 70W power amplification
  • ROOM CONTROL and HIGH TRIM response controls
  • XLR and TRS phone jack inputs accept balanced or unbalanced signals



Specification

Speaker Type 2-way bi-amp powered studio monitor
Frequency Response (-10dB) 54Hz - 30kHz
Frequency Response (-3dB) 74Hz - 24kHz
Component 5" cone (Low Frequency), 1" dome (High Frequency)
Crossover 2kHz
Output Power 70W (45W Low Frequency, 25W High Frequency)
Input Sensitivty -10 dBu/10k ohms
I/O Connectors XLR3-31 type (balanced), PHONE (balanced)
Indicators Power ON (White LED)
Power Consumption 45W
Shape Bass-reflex type
Cabinet Material MDF
Dimensions 170mm (W) x 285 mm (H) x 222 mm (D) / 6-11/16" (W) x 11-1/4" (H) x 8-3/4" (D)
Net Weight 5.3kg / 11.7 lbs.
Accessories Owner's Manual, Power Cord
Packaging Single
Others Level control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz)
